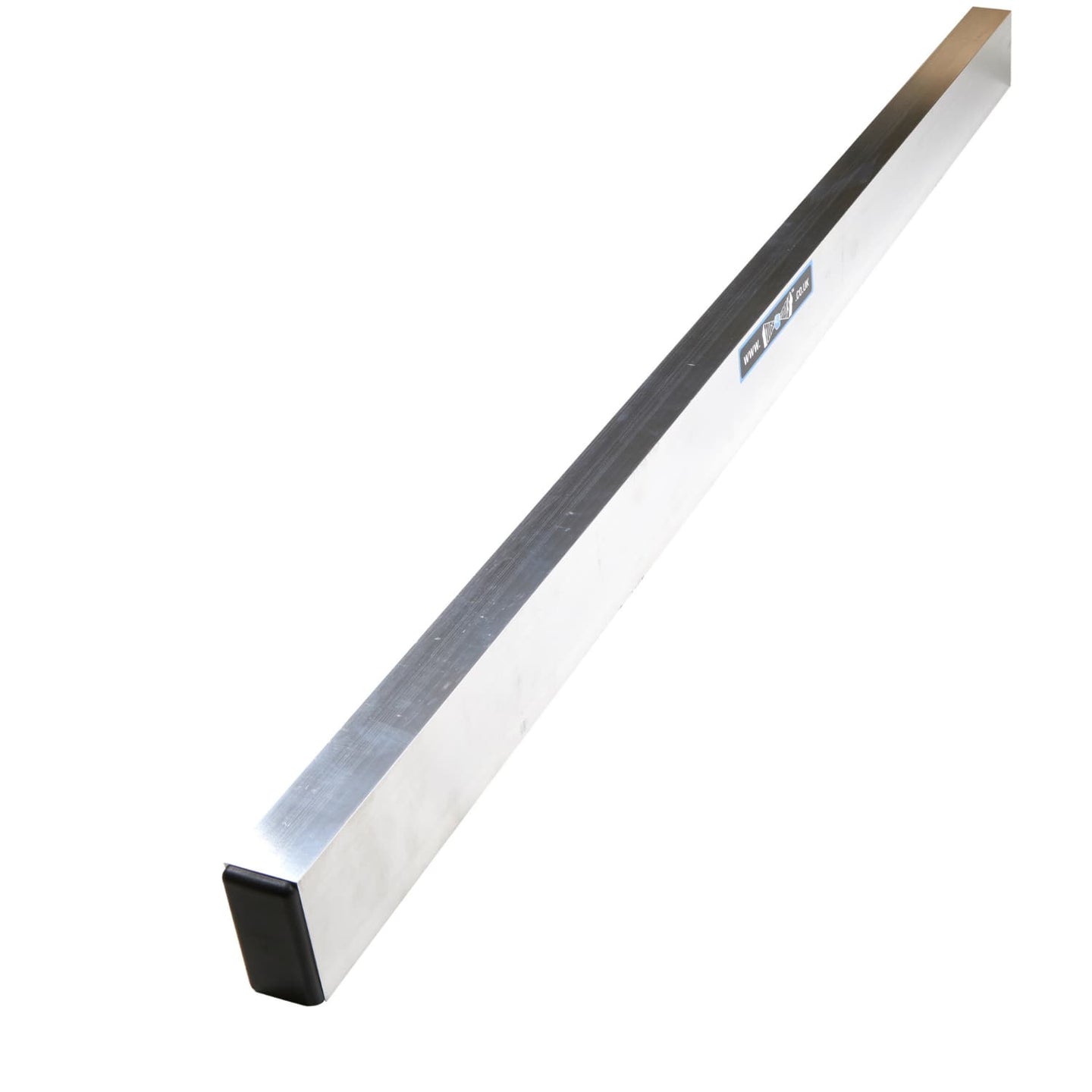

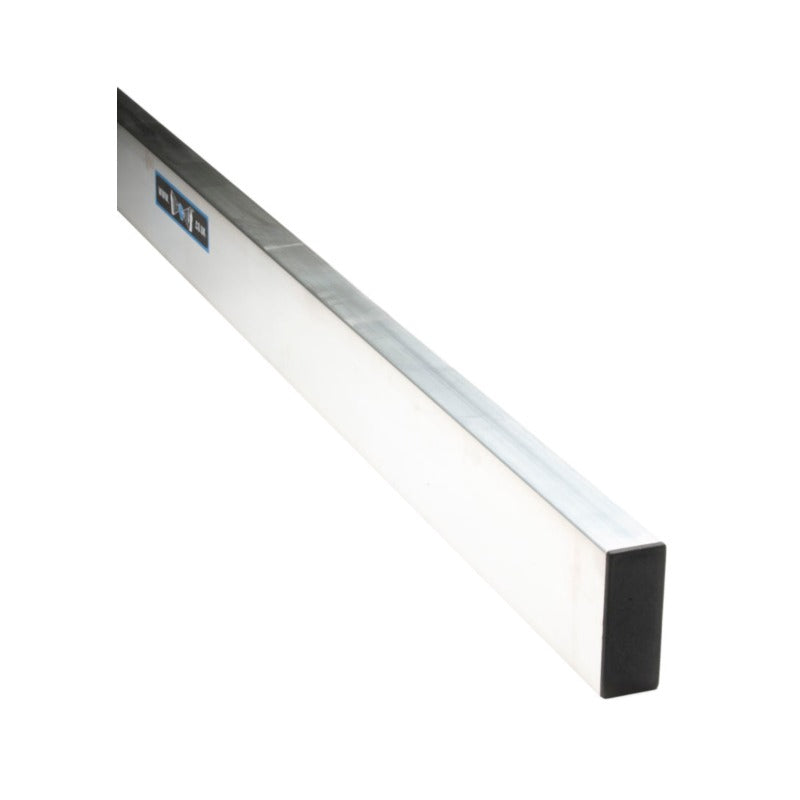

Heavy Duty Screed Flooring Straight Edge – 2mm Thick, 100×50 Profile (1m–6m)

Built specifically for floor screeding and concrete levelling, this heavy duty straight edge is designed to handle the weight, pressure, and long spans involved in professional floor work.

Manufactured with a 100mm × 50mm box section and a 2mm thick aluminium wall, this straight edge delivers maximum rigidity over lengths from 1 metre up to 6 metres. The wide sectional profile significantly reduces flex when striking off sand/cement screeds, fibre-reinforced screeds, and concrete, helping maintain a flat, level finish across large floor areas.

For screeders working to SR1, SR2 or SR3 surface regularity, straightness matters. Each straight edge is extruded to British tolerance for straightness and individually checked before dispatch, giving you confidence when pulling bays, checking levels, and finishing floors.

The wide grip profile provides a solid, stable handhold, allowing you to apply even downward pressure when cutting back heavy material. This improves control during long pulls and reduces the risk of riding over high spots — a common issue with lighter or narrower profiles.

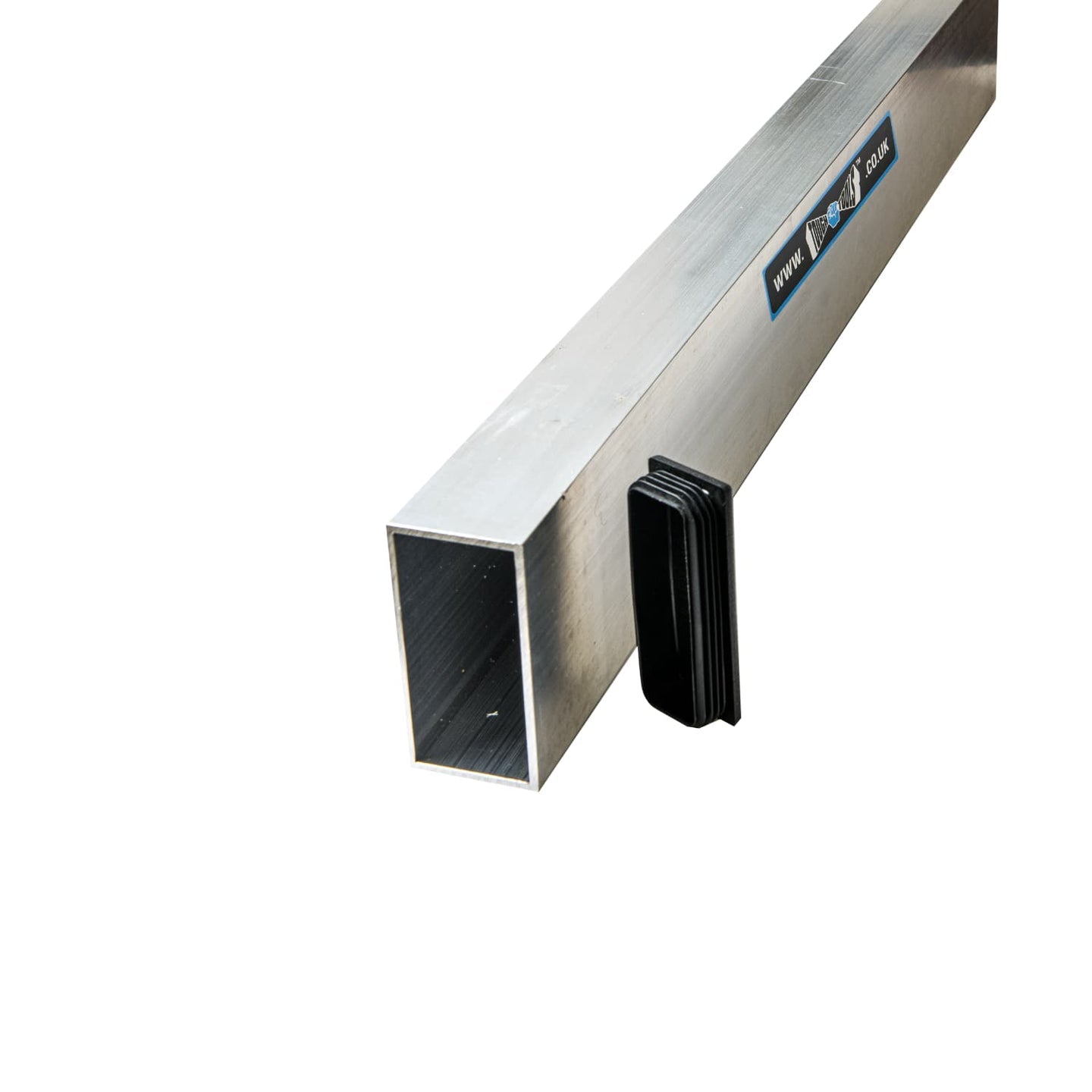

Impact-resistant end caps are fitted to both ends to protect the straight edge from damage during transport and daily site use, making it suitable for demanding concreting and screeding environments.

✅ Why Screeders Choose This Straight Edge

• High rigidity for pulling heavy screed and concrete

• Minimal deflection over long spans up to 6m

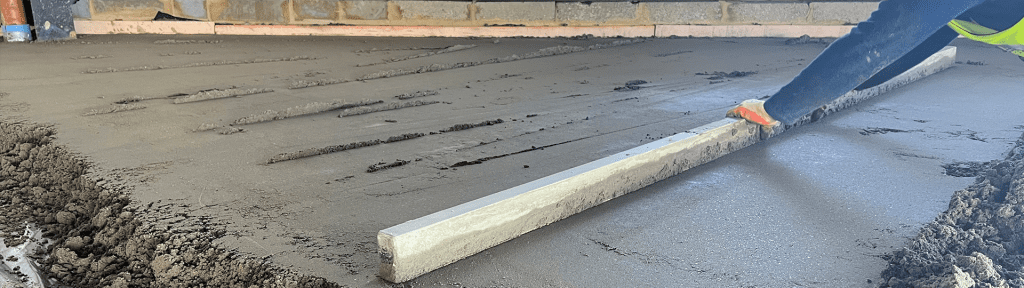

• Ideal for striking off, levelling and checking floors

• Supports accurate work to BS 8204 surface regularity standards

• Wide profile improves control and consistency

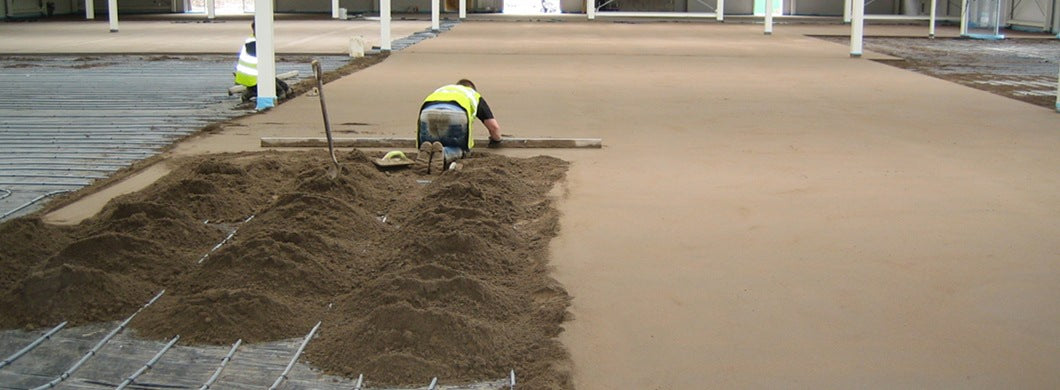

🧱 Typical Floor Applications

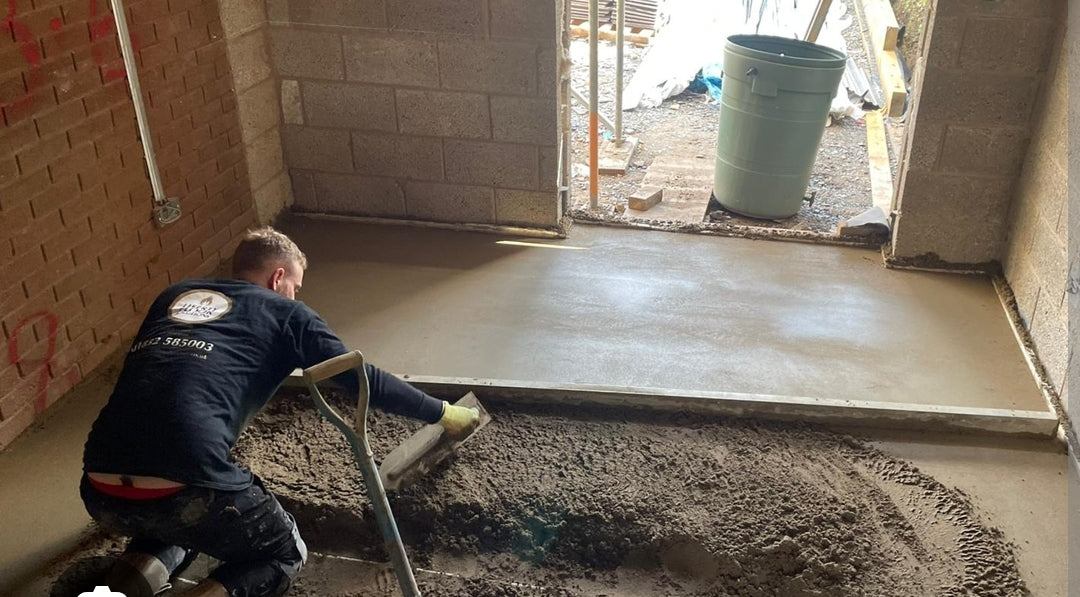

• Traditional sand & cement screeding

• Fibre-reinforced screeds

• Concrete floor levelling

• Large bay floor preparation

• Final level checks before floor coverings

📐 Technical Specification

• Section Size: 100mm × 50mm

• Wall Thickness: 2.0mm aluminium

• Available Lengths: 1m to 6m

• Construction: Heavy duty aluminium box section

• End Caps: Impact-resistant rubber
