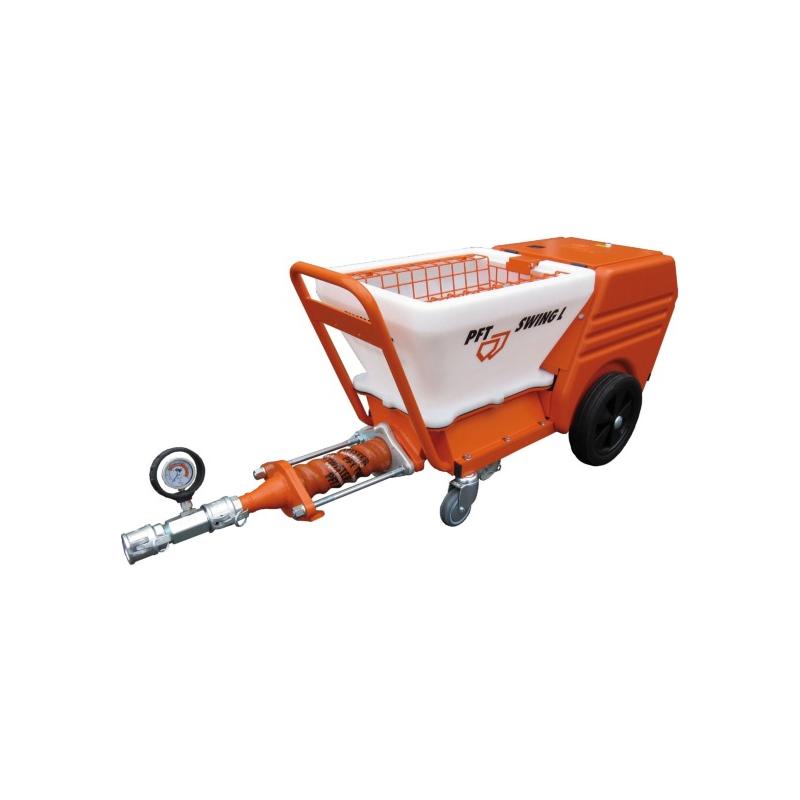

Swing L

The PFT SWING L is a universal conveying pump, available either with a firm or electrical infinitely adjustable 4 kW or 5.5 kW direct drive. You can pump, press and spray liquid, pumpable and solvent-free materials up to a grain size* of max. 8 mm.

For all pumpable wet products and pasty materials such as:

• Adhesive mortars
• Reinforcing mortars
• Plastic resign silicate plasters
• Silicate plasters
• SPCC restoration mortars
• Compound materials
• Finishing coats
• Decorative plasters
• Bentonit
• Spray trowel plaster

as well as in the field of thermal insulation composite systems

PFT SWING L Advantages at a glance:

• small, light and compact
• large conveying distance and height
• low filling height, fits easily under every horizontal mixer
• powerful 4 kW or 5.5 kW direct drive, electrical infinitely adjustable or with firm speed
• plastic material hopper
• fast cleaning and maintenance work
• variable capacity by changing the pump unit (D- and R-pumps)*
• construction site-proved wheels
• fits in almost every station wagon without disassembly of the machine
• universal feeding by buckets or by horizontal mixers
• control unit integrated
• optional: electrical remote control

Part no.	Description	Picture
00197829	PFT SWING L 400 Standard equipment - Pump unit D 6-3 TWISTER - Mortar pressure gauge 35 mm galvanized, cpl. - Integrated control unit - Adapter coupling 35-/25 male - Cleaner coupling 35 female with Geka-coupling - Material hopper with protection grille - Operating instructions - Tool bag
00178415	PFT SWING L FC 400 Standard equipment - Pump unit D 6-3 TWISTER - Mortar pressure gauge 35 mm galvanized, cpl. - Integrated control unit - Material hopper with protection grille - Adapter coupling 35-/25 male - Cleaner coupling 35 female with Geka-coupling - Operating instructions - Tool bag
00201952	PFT SWING L FC 230 Standard equipment - Pump unit D 8-1.5 TWISTER - Mortar pressure gauge 35 mm galvanized, cpl. - Integrated control unit - Material hopper with protection grille - Power cable 3 x 2.5 mm², 25 m with plug with earthing contact and CEE plug - Adapter plug CEE 16A 3p. 230 V schuko coupling - Adapter coupling 35-/25 male - Cleaner coupling 35 female with Geka-coupling - Operating instruction
