Plastering Machine PFT G4 Gen25 Smart Starter Bundle

£9,999.00
Tax included Shipping calculated at checkout.
Make Selection

Plastering Machine PFT G4 Gen25 Smart Starter Bundle - 400v PFT G4 Smart Bundle We are out of stock ! Order now on Backorder to make sure you get one. 2-4 Weeks Delivery Time

Why Buy From PFT Wales ?

We sell Quality for profesionals
Vat Reciept Sent
Reliable Prime Like Delivery
Change your mind ? send it back.
Prices Checked regularly
Look for bundle Deals

Delivery and Shipping

Small items £3.50 48hr

Larger Items £7.99 24 hr

Bulky oversized £14.99 48 hr

Long over 1.5 mt £24.99 2-4 days

Small Pallet. £55.00 48 hr

Large Pallet £100.00 48 hr

Not Sure ? Call us 01792 677057 9-4 weekdays

Description

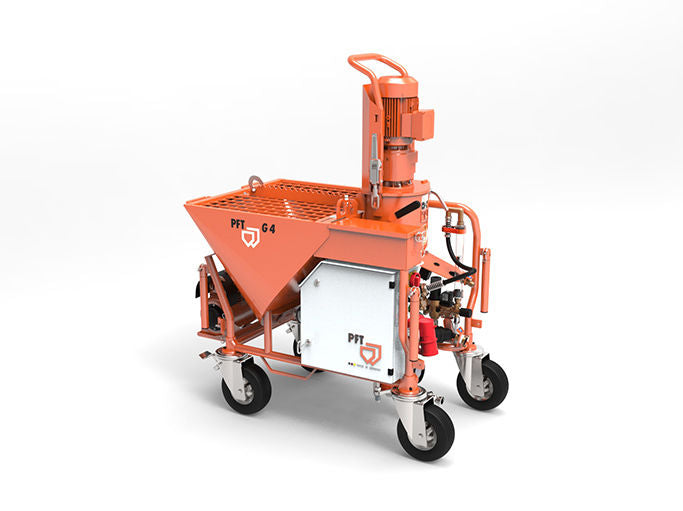

PFT G 4 Smart Mixing Pump – Compact, Powerful, and Ready for Site Work

The PFT G 4 Smart is the most popular and budget-friendly G4 model, built for professional plastering and rendering. Compact yet powerful, it delivers the same trusted PFT performance in a streamlined, easy-to-use design.

Each PFT Wales bundle includes everything needed to start work on-site the next day — hoses, gun, cables, and full setup support.

Choose between:

  • 230V model – runs from standard mains power.

  • 400V model – heavy-duty 3-phase 6 kW version for maximum output.
    This version is also available with or without a portable Honda generator.

Built in Germany and backed by full training and support, the PFT G 4 Smart gives you professional results with lower running costs and proven reliability.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

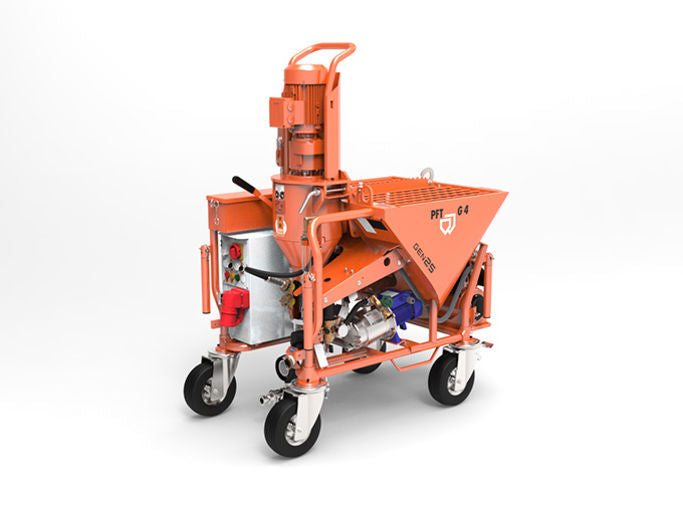

New Features on GEN25 PFT G4

New Design for 2025

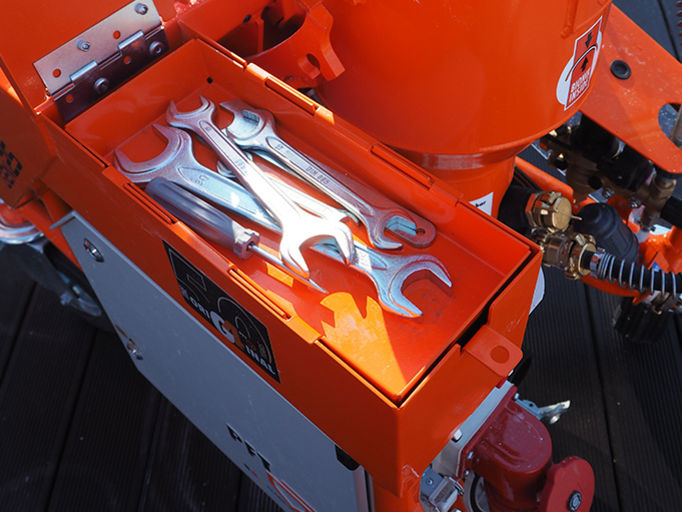

Tool Box Located at front of Machine with extra shelves

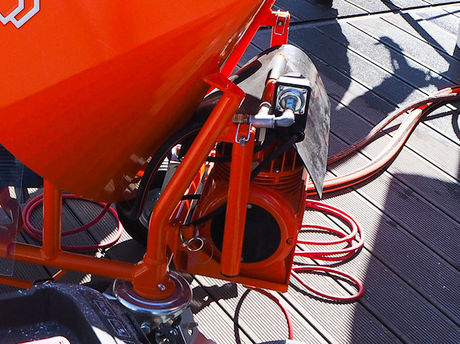

Remove the Compressor

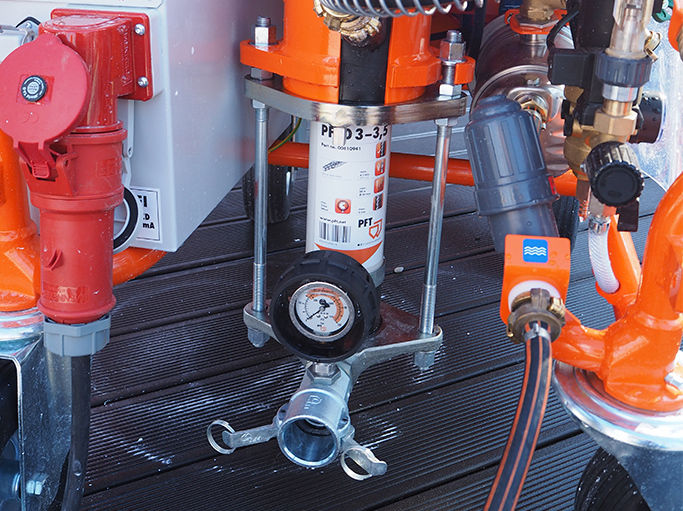

New Bayonet Fitting on Suction Flange

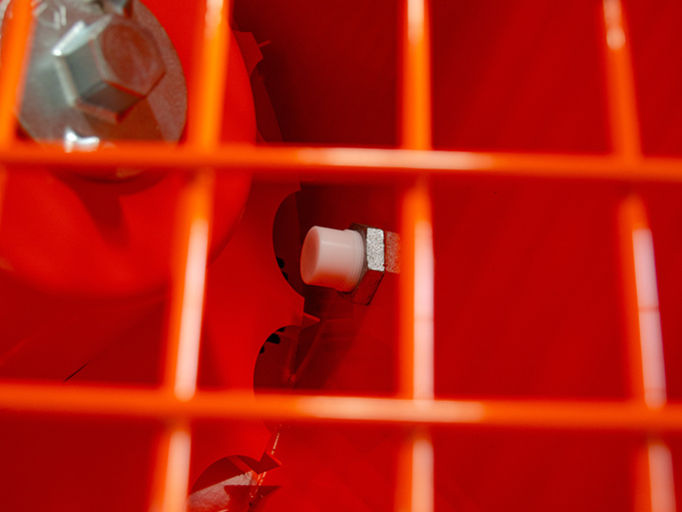

Material Level sensor available to retrofit

Build your G4 to suit your Needs

With a great range of accesories and available updates, you can build your G4 exactly as you need it. Add Big Wheels or a low material level sensor or any of our many add ons are available from PFT Wales

Compliment your G4

Our Range of G4 Plastering Machines

  • Plastering Machine PFT G4 Gen25 Smart Starter Bundle 400 volt 3 Phase

    Part no. for machine :00855897

    Conveying output, max.:
    35 l/min

    Conveying distance up to:
    30 m in 25mm Material hose
    50 m in 35mm Material hose

    Basic equipment on the Machine

    Connection Plug:
    400V/3ph Red 5 Pin

    Drive:
    6.05 kW, 400 rpm
    2-stage gear box with inclination switch
    0.75 kW, 28 rpm

    Mixing tube:
    Steel mixing tube for D pumps

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 castors, 2 double-stop castors

    Water connection:
    Geka DN19 (3/4") - 2.5 bar working pressure

    Operation and control:
    Main switch with rotary selector
    Start/Stop (on the device | remote)
    Mortar pressure reduction button
    Water flow button
    Manual star wheel operation | automatic automatic
    Manual water pump operation | automatic

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 6 sacks (at 25 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Machine weight (up to pressure flange)
    without accessories
    ~ 287 kg

    PFT Wales Bundle equipment package :

    Pump unit Rotor stator:
    D 6-3 PERFORMER

    Mortar & Air hose:
    RONDO 25mm - 25 m

    Water pump for pressure boosting:
    AVO 500

    Water flow meter:
    100 – 1,000 l/h

    Air compressor:
    COMP M-250, 400 V, 3 Ph, 50 Hz, 0.9 kW
    250 l/min - max. 4 bar with pressure switch-off

    Spraying gun
    Spraying gun smartline Short Geka connection

    Connection cable:
    RED 5-32 A 25 m

    Water hose/air hose:
    Water hose 3/4" Geka - 25 m
    Air hose 1/2" Ewo | Geka - 26 m

    Suction Hose 2.5 m

    Cleaning Hose with Gun 2.5 mt

    Level sensor

    Available to retrofit at PFT Wales or part only

    TRAINING INCLUDED AT OUR SWANSEA DEPOT

  • Plastering Machine PFT G4 Gen25 Smart Starter Bundle 230v Plug in the mains

    Part no. for machine :00855897

    Conveying output, max.:
    35 l/min

    Conveying distance up to:
    30 m in 25mm Material hose
    50 m in 35mm Material hose

    Basic equipment on the Machine

    Connection Plug:
    230v Single phase Blue 3 pin 16 amp

    Drive:
    6.05 kW, 400 rpm
    2-stage gear box with inclination switch
    0.30 kW, 12 rpm

    Mixing tube:
    Steel mixing tube for D pumps

    Mixing shaft:
    BIONIK G 4 Machine-applied plaster

    Grout outlet with mortar pressure gauge:
    DN25 male part

    Wheels:
    2 castors, 2 double-stop castors

    Water connection:
    Geka DN19 (3/4") - 2.5 bar working pressure

    Operation and control:
    Main switch with rotary selector
    Start/Stop (on the device | remote)
    Mortar pressure reduction button
    Water flow button
    Manual star wheel operation | automatic automatic
    Manual water pump operation | automatic

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 6 sacks (at 25 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Machine weight (up to pressure flange)
    without accessories
    ~ 287 kg

    PFT Wales Bundle equipment package :

    Pump unit Rotor stator:
    SD 6-3 Slimline soft

    Mortar & Air hose:
    RONDO 25mm - 25 m

    Water pump for pressure boosting:
    AVO 500

    Water flow meter:
    100 – 1,000 l/h

    Air compressor:
    COMP M-250, 400 V, 3 Ph, 50 Hz, 0.9 kW
    250 l/min - max. 4 bar with pressure switch-off

    Spraying gun
    Spraying gun smartline Short Geka connection

    Connection cable:
    2.5mm x 20 m Blue male female plug

    Water hose/air hose:
    Water hose 3/4" Geka - 25 m
    Air hose 1/2" Ewo | Geka - 26 m

    Suction Hose 2.5 m

    Cleaning Hose with Gun 2.5 mt

    Level sensor

    Available to retrofit at PFT Wales or part only

    TRAINING INCLUDED AT OUR SWANSEA DEPOT

  • Plastering Machine PFT G4 Gen25 Screed 400v

    Part no. :00870633Performance :

    Conveying output, max.:
    80 l/min

    Conveying distance up to:
    30 m in DN25
    50 m in DN35

    Basic equipment :

    Connection value:
    400V/3ph/50Hz, C 25A all-pole

    Drive:
    6.05 kW, 400 rpm
    2-stage gear box with inclination switch
    0.75 kW, 28 rpm

    Mixing tube:
    Rubber mixing tube for D/R pumps with bayonet coupling

    Mixing shaft:
    BIONIK G 4 floor screed

    Grout outlet with mortar pressure gauge:
    DN35 male part

    Wheels:
    2 castors, 2 double-stop castors

    Water connection:
    Geka DN19 (3/4") - 2.5 bar working pressure

    Operation and control:
    Main switch with rotary selector
    Start/Stop (on the device | remote)
    Mortar pressure reduction button
    Water flow button
    Manual star wheel operation | automatic automatic
    Manual water pump operation | automatic

    Dimensions :

    Filling height:
    910 mm

    Hopper volume:
    145 litres ~ 5 sacks (at 30 kg)

    Length/Width/Height:
    1,200/720/1,530 mm

    Machine weight (up to pressure flange)
    without accessories
    ~ 267 kg

    PFT Wales Bundle equipment package :

    Pump unit Rotor stator:

    D 6-3 PERFORMER


    Mortar & Air hose:

    RONDO 25mm - 20 m plus 5 mt RONDO superlight flex

    Water pump for pressure boosting:

    AVO 1000


    Water flow meter:

    100 – 1,000 l/h


    Air compressor:

    COMP P-200, 230 V, 1 Ph, 50 Hz, 0.5 kW,

    200 l/min – max. 3.4 bar with pressure cut-off


    Spraying gun

    Spraying gun Short with turnable connection Geka connection


    Connection cable:

    25 mt red plug 32 amp


    Water hose/air hose:

    Water hose 3/4" Geka - 25 m

    Air hose 1/2" Ewo | Geka - 26 m

    Suction Hose 2.5 m

    Cleaning Hose with Gun 2.5 mt


    Level sensor

    Fitted standard



    TRAINING INCLUDED AT OUR SWANSEA DEPOT

  • Plastering Machine PFT Gen25 G4 Switchable Voltage Bundle

    Item no.:00867557Perfomance:

    Maximum flow rate:
    35 l/min (230V)
    60 l/min (400V)

    Delivery distance up to:
    15 m for 25mm material hose (230 V)
    30 m for 25mm material hose (400 V)
    50 m for 35mm material hose (400 V)

    Basic equipment:

    Connected load:
    400V/3ph/50Hz, C 25A all-pole
    230V/1ph/50Hz, C 16A

    Drive:
    6.05 kW, 400 rpm
    2-stage gearbox with tilt switch
    0.30 kW, 12 rpm

    Mixing tube:
    Rubber mixing tube for D/R pumps
    with bayonet coupling

    Mixing spiral:
    BIONIK G 4 machine plaster

    Mortar outlet with mortar pressure gauge:
    DN35 M-part

    Castors:
    2 swivel castors, 2 double-stop swivel castors

    Water connection:
    Geka DN19 (3/4") – 2.5 bar operating pressure

    Operation and control:
    Main switch with rotary field selection
    Start/Stop (on the device | remote)
    Mortar pressure reduction
    button Water feed button
    Cell wheel operation manual | automatic
    Water pump operation manual | automatic

    Mass:

    Filling height:
    910 mm

    Container volume:
    145 liters ~ 5 bags (30 kg each)

    Length/Width/Height:
    1,200/720/1,530 mm

    Machine weight (up to pressure flange)
    without accessories
    ~ 271 kg

    PFT Wales Bundle equipment package :

    Pump unit Rotor stator:

    D 8 1.5


    Mortar & Air hose:

    RONDO 35mm Pouring hose 20 meters

    Water pump for pressure boosting:

    AVO 1000


    Water flow meter:

    250 - 2,500 l/h

    Air compressor:

    Not included


    Spraying gun

    Not included


    Connection cable:

    25 mt red plug 32 amp


    Water hose/air hose:

    Water hose 3/4" Geka - 25 m

    Suction Hose 2.5 m

    Cleaning Hose with Gun 2.5 mt


    Level sensor

    Fitted standard



    TRAINING INCLUDED AT OUR SWANSEA DEPOT

  • Plastering Machine PFT Gen25 G4 Switchable Voltage Bundle

    Item no.:00867557Perfomance:

    Maximum flow rate:
    35 l/min (230V)
    60 l/min (400V)

    Delivery distance up to:
    15 m for 25mm material hose (230 V)
    30 m for 25mm material hose (400 V)
    50 m for 35mm material hose (400 V)

    Basic equipment:

    Connected load:
    400V/3ph/50Hz, C 25A all-pole
    230V/1ph/50Hz, C 16A

    Drive:
    6.05 kW, 400 rpm
    2-stage gearbox with tilt switch
    0.30 kW, 12 rpm

    Mixing tube:
    Rubber mixing tube for D/R pumps
    with bayonet coupling

    Mixing spiral:
    BIONIK G 4 machine plaster

    Mortar outlet with mortar pressure gauge:
    DN35 M-part

    Castors:
    2 swivel castors, 2 double-stop swivel castors

    Water connection:
    Geka DN19 (3/4") – 2.5 bar operating pressure

    Operation and control:
    Main switch with rotary field selection
    Start/Stop (on the device | remote)
    Mortar pressure reduction
    button Water feed button
    Cell wheel operation manual | automatic
    Water pump operation manual | automatic

    Mass:

    Filling height:
    910 mm

    Container volume:
    145 liters ~ 5 bags (30 kg each)

    Length/Width/Height:
    1,200/720/1,530 mm

    Machine weight (up to pressure flange)
    without accessories
    ~ 271 kg

    PFT Wales Bundle equipment package :

    Pump unit Rotor stator:

    D 8 1.5


    Mortar & Air hose:

    RONDO 35mm Pouring hose 20 meters

    Water pump for pressure boosting:

    AVO 1000


    Water flow meter:

    250 - 2,500 l/h

    Air compressor:

    Not included


    Spraying gun

    Not included


    Connection cable:

    25 mt red plug 32 amp


    Water hose/air hose:

    Water hose 3/4" Geka - 25 m

    Suction Hose 2.5 m

    Cleaning Hose with Gun 2.5 mt


    Level sensor

    Fitted standard



    TRAINING INCLUDED AT OUR SWANSEA DEPOT

Frequently Asked Questions about Buying a Plastering Machine

230 volt also known as single phase machines can be plugged into the mains, 400v also known as 3 phase will require a generator if 400v power is not available. Many newer sites in UK now have 400v installed
The 400v machine will have more power which means it will pump further away and faster

The answer depends on your needs. If you require a machine to help you on your domestic jobs and your team are no more than 3, PFT Wales suggest a PFT Ritmo . We have a few Ritmos in our Range .
However if you have a larger team or work on new building sites where there is no available power we recommend one of our G4 Range

The answer is yes but when we say plastering we refer to one coat plasters or backing plasters like MP75 or Thistle Hardwall
We do not recommend any thistle Finish Products

There have been many attempts and claims that this is possible. The machine technology is certainly capable. The issue lies with the material. Can 1 Operative cope with extra meters that the machine allows you to apply. In short we look at it like this, If 2 plasterers lay on a set each, can 1 plasterer then control and finish the 2 sets to a standard and can he then do it again and again

Pretty much any bagged render, base coat, backing plaster,screed, mineral topcoat, cork, lime the list goes on. Just check the manufacturers website for machine compatability.

Everything you need to go on to your job after you complete your FOC training session. Its all included you wont need any more

  • Plastering Machine
  • Generator if required
  • Material Hoses
  • Water Hoses
  • Suction hoses
  • Air Hoses
  • Power Cables
  • Spraying Gun and Cleaning Gun
  • Adapters and fittings
  • Water pump if required

If you do not have power available then yes, PFT Wales can supply a Honda or Briggs and Stratton Generator to suit your machine selection.
Many G4 users like to have their own generator as they are visiting sites where power is not available.

Not Really. Some plasterers prefer diesel machines over electric simply because they believe them to be easier to use.


Electric machines are in truth simpler to run with less skilled and cheaper labour than a diesel machine and in the right hands a £30k diesel machine will not earn it owner any more than a £5k PFT Ritmo Smart.


The operator can only apply enough on the wall that they can finish comfortably. Therefore a 60 m2 gable will be applied in 60-120 minutes ( depending on the size of the team)

Storage of the electric machine is always simpler aswell

Diesel is considered old technology reliant on staff to run the machine that are very capable at their jobs. Whereas you can teach someone to spray render in a few hours and anyone is capable of loading the electric machine of dry powder

The electric machines are just fed dry powder which is mixed and pumped and sprayed in one operation.

A diesel machine requires a skilled operative to batch mix 6-12 bags to the correct consistency at a time. There is room for error

Electric machines take half a bucket to clean vs half a barrel of water when washing out the diesels mixing chamber and conveying chamber

At least 2.5bar. Machines are supplied with water pumps. we reccomend you use a 220 ltr water butt as a buffer to maintain the water pressure required. It simple we supply a water hose to fill the water butt and suction hose to suck it to the water pump which sends it to the machine.
This will all be shown during a training session

Yes it is . Its included in the price and is held at our Swansea Depot. All you need do is bring bags to practice with.

Frequently Asked Questions about running a Plastering Machine

Depending on the machine, The outputs range from 6 lts a min up to 80 lts min
Single phase machines have a speed dial whereas 3 phase machines require you to change the Rotor and Stator to change the output

Ritmos use B pumps or SD6-3 Pumps

G4 Use D pumps and R pumps

For this you will choose a switchable version. This means you can select the voltage of the power source you wish to use.
The Ritmo XL and G4 switchable are available with this option

For a Ritmo about 3 bags inc one inside the pipe. A g4 holds about 7 inc 1 in the pipe.

If you have someone constantly feeding the machine during the spraying, then this is not an important factor. Just organise the job and have bags close by.

You will need to keep the water filters and air filters clean after each use . 10 minutes work
When it comes to servicing you can book your machine in with us once a year and we will carry out a service for you.

Yes the 230v machines plug straight in.

All this is part of the training. We will be available to answer any questions by telephone when you are on site

10 minutes if you are efficient, 20 minutes if you have to store everything away after each use

A rotor stator set and a mixing shaft will reduce any downtime and waiting for deliveries
Spare water and air fittings are useful

Spare spraying caps, seals and sponge balls are useful.

Yes

The Rotor and Stator is a werable part lasting betweeen 10 and 20 pallets. It is wise to keep a spare
The Mixing shafte can also get worn. These last about 80 -120 pallets

Lets see a PFT Gen 25 G4 getting Built

PFT are without a doubt the absolute cutting edge in plastering machine technology
You Get What You Pay For

Back to top
